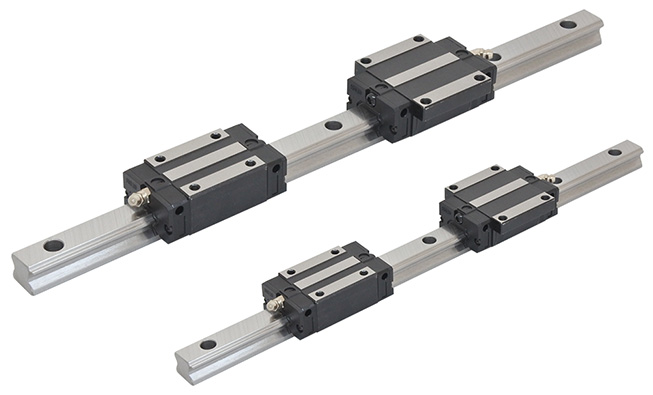

Characteristic
■High rigidity：Axial and radial bearing capacity.
■High precision：Raceway surface hardening treatment, accurate positioning.
■High speed：Low friction,easy to reach high speed.
■Long life and wear resistance，packaged separately to reduce storage space.
■Provide light load slider：light load slider is suitable for low load, small space use.
■Easy maintenance: slider have oil injection hole for lubrication.
■Interchangeability：High precision, reliability.
Quick Selection
■Installation mode: horizontal or side installation.
■Maximum load: HG, EG, MG three series, a single slider maximum dynamic load up to 200KN
■Guide width selection：HG：15、20、25、30、35、40、45、55、65
EG：15、25、30、35、45、55
MG：5、7、9、12、15
Slider selection：Flanged slider, standard slider, short slider
■Guide length: up to 4000mm, micro rail length up to 2000mm.
Main Applications
■Turning milling drilling machine, CNC machining machine,Precision testing instrument,Electronic instruments, semiconductor equipment,Transportation equipment, automation equipment.
