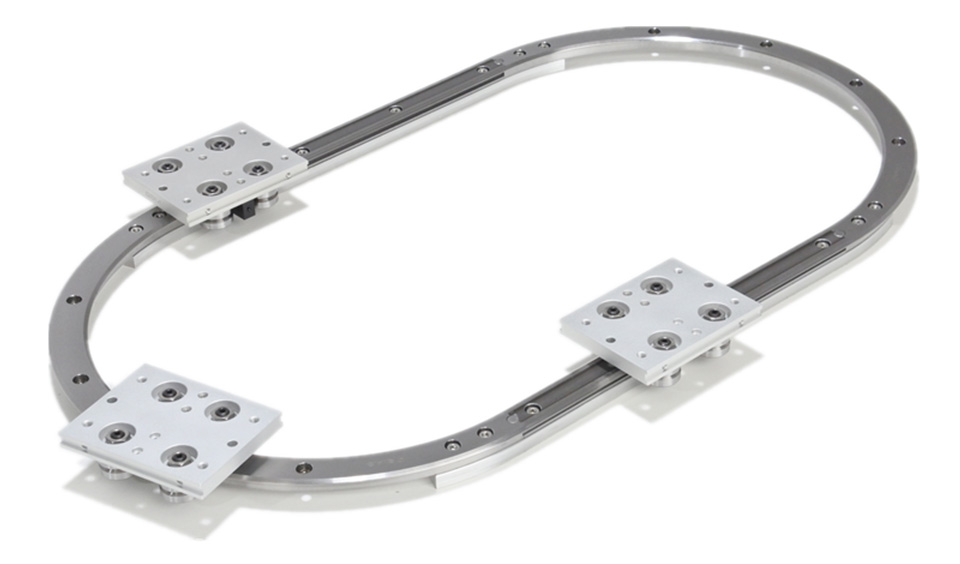

Curved Rail

■ Select European raw material;

■ High speed: The rolling friction resistance of the guide rail and the roller is small, which can realize high-speed movement;

■ High precision: The guide rail is ground matching with high-precision rollers to achieve high-precision movement;

■ High load capacity: High-strength guide rails matching with heavy-duty rollers,  achieve high load performance;

■ Low noise: The surface of raceway has good flatness and roughness, so the product has low noise performance;

■ The movement at the joint of the ring and the straight rail is smooth and quiet;

■ The sliding block adopts a reinforced design, so the eccentric roller is not easy to loosen, but can be easily disassembled;

■ The length of the straight rails can be extended to any size by joint;

■ Products are standardized and serialized to meet various needs;

■ The quenching treatment of the raceway greatly improves the hardness and strength of the material, which greatly improves the impact resistance and wear resistance of the guide rail. Rail has a long service life;

■ Rail surface could be protected against corrosion with Blacking, Nickel plating or Chrome plating.

■ The roller adopts the internal angular contact structure, strengthening design, so the load capacity and impact resistance are greatly enhanced;

■ Twin roller (two single-groove rollers) or Double-raw roller are available to meet different load capacity requirements;

■ Stainless steel roller is available;

■ Floating roller is available to compensate the error during installation and use;

■ Provide a complete set of lubrication solution;

■ Provide G1 and G3 precision grade. G1 is focus on accuracy, G3 is focus on cost.

■ Experienced technical team provide customized design and quickly respond support.

■ Installation method: Horizontal or side installation;

■ Load capacity for each station, Station quantity, Distance between two stations;

■ Transmission speed, takt time;

■ Diameter of ring rail;

■ Positioning accuracy;

■ Noise requirement;

■ Surface protection;

■ Another requirement.

■ 3C Industry, Lithium battery, Medical and Pharmacy Industry, Photovoltaic Industry, Automotive and Electronics etc.;

■ Particularly suitable for multi-station, multi-process high-efficiency operation such as assembly, testing, welding.
