Characteristic

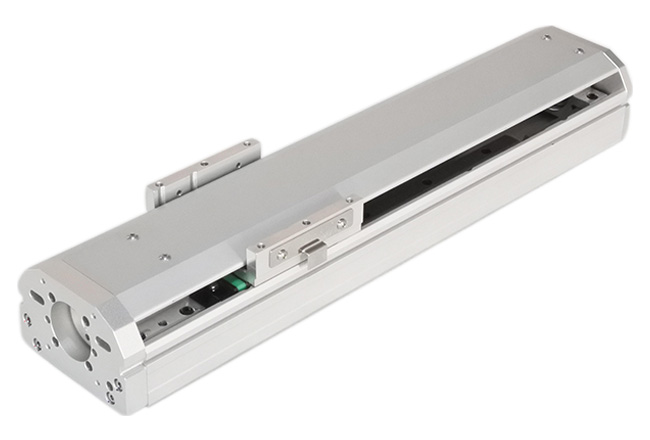

■ Modular design: This series module integrates linear guides and belt in a U-shaped body to realize compact structure.
■ Light weight with high rigidity: Optimized structure + aluminium module body
■ High load capacity: Select high load capacity linear guides.
■ High precision: Precision linear guide achieves high accuracy and high repeat positioning accuracy.
■ High Speed: Low friction, high precision, small starting torque, easy to achieve high speed.
■ Excellent wear resistance: The raceway is induction hardened, which greatly improves the hardness and strength of the material.
■ Dustproof: Designed with protective structures of aluminium shield to meet different needs.
■ Easy maintenance: Easy to fill lubricate to linear guides from Grease Nipples.
Main Parameters
■ Effective stroke: 50-4000mm,
■ Load capacity: Provide SETB14、SETB17、SETB22 three size modules with the max. load 85Kg.
■ Speed: Up to 2m/s
■ Accuracy: Repeated positioning accuracy ±0.05
Main applications
■ Conveying equipment
■ Inspection and testing equipment
■ Automatic assembling equipment
