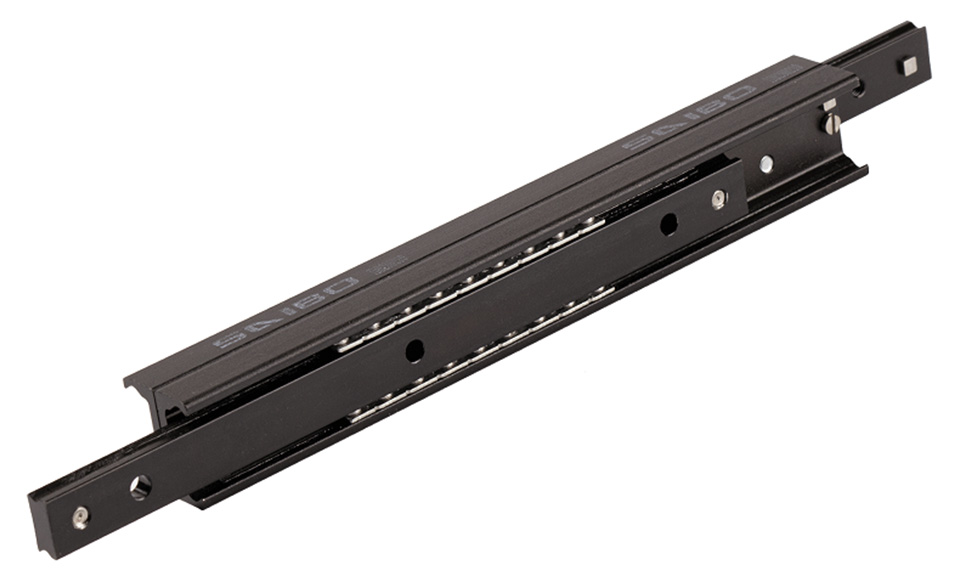

TDB Series Telescopic Rail

Use European raw materials, Full extension;Safety margin is designed to have a low deflection in the extended state.

Product Introduction
Characteristic
Use European raw materials;
■ Full extension: Extension ratio is 100%. Max. 140% customization;
■ Heavy duty: Cold-drawn steel profiles, optimized structure to meet high duty request;
■ Low deflection: Safety margin is designed to have a low deflection in the extended state.
■ Excellent wear resistance: The raceway is induction hardened, which greatly improves the hardness and strength of the material. Then the impact resistance, wear resistance and service life are improved accordingly.
■ Surface protection: Surfaces are always protected against corrosion. Black Zinc plating is standard. White Zinc, Nickel plating are available.
■ Accessories and special functions:Set limit bolts to choose single/dual direction extension; Set eccentric wheels to prevent the wrong running.

Quick Product Selection
■ The maximum load per pair: TDB telescopic rail provide three section sizes of 28, 35 and 43 for different load capacities. A pair max. load capacity reaches 5000N.
■ The rail length (Available installation space) and the desired stroke: TDB telescopic rail max. length and max. stroke reach 1970mm and 2026mm.

Main Applications
Rail vehicle seats, Bus barrier-free pedals, Slide doors, Feeding mechanisms, etc.
