Characteristic

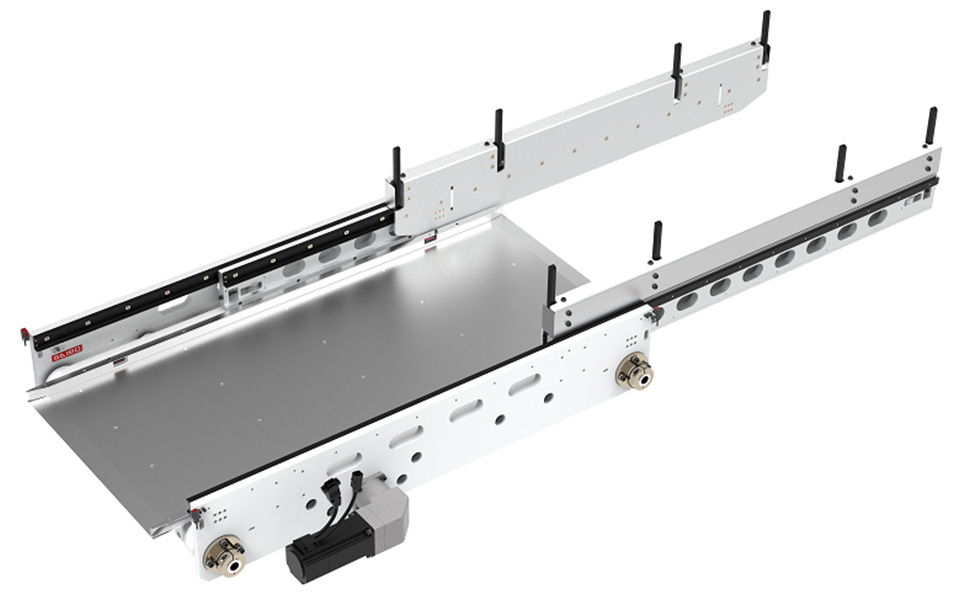

■ SAIBO engages in warehouse & logistic industry many years. After several generations of optimization and improvement, the product has solved various problems in the application; SAIBO telescopic fork helps customers reduce time and cost for project:
■ Optimized structure, Accurate positioning, Low deflection at full extension status.
■ Stable and reliable performance。
■ Quick response: Experienced technical team provide quick respond;
■ Complete specifications: Provide single/double depth telescopic fork for standard basket.
Parameters
■ Suitable for 400x600 basket, Max load capacity: 50Kg
■ Dimensions (Width*Depth*Height): 723*1023*232mm, Weight：55Kg
■ Effective loading width: 414mm
■ Effective loading depth: 930mm
■ Max. pick/drop distance: 1444mm
■ Max. extend speed: 1.5m/s, Max. acceleration: 1m/s²
■ Motor power: 400W
Main Applications
■ Shuttles for automated warehouse, AGV, MINI load etc.
