Circular Rail & Conveyor

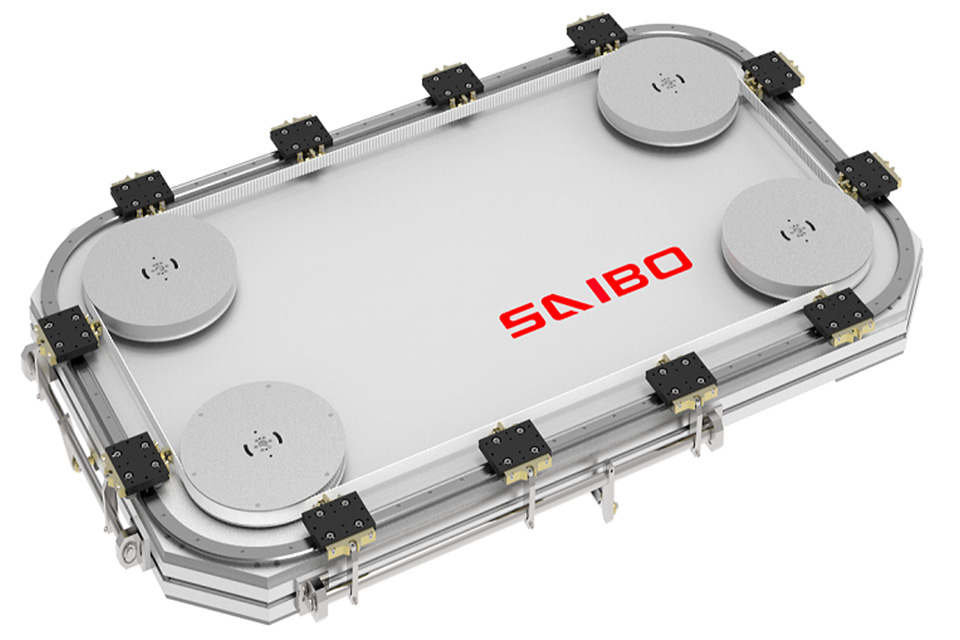

Rectangle Circular Conveyor

There are four straight line which could set much more stations; Horizontal or vertical installation are available;Low noise: 70 dB even at high speed of 1m/s;

Product Introduction
Characteristic
There are four straight line which could set much more stations
■ High-speed: It can realize multi-station high-speed synchronous transmission, and the movement is smooth and steady;
■ Accurate positioning: The repeated positioning accuracy can reach 0.05 by mounting positioning mechanism;
■ Horizontal or vertical installation are available;
■ Belt, chain and other transmission modes can be selected according to the application;
■ Low noise: 70 dB even at high speed of 1m/s;
■ Excellent wear resistance: The raceway is induction hardened to 58-62HRC, which greatly improves the hardness and strength of the material. Then the impact resistance, wear resistance and service life are improved accordingly.
■ If there is a large load such as punching, an auxiliary support mechanism can be set up to increase the workstation load capacity;
■ Multiple standard ring diameters are available: 255, 351, 468, 612;
■ The length of the straight rail can be extended by joint;
■ Surface protection: Surfaces are always protected against corrosion. Black Zinc plating is standard. Blackening and Chrome coating are available.
■ Provide G1 and G3 precision versions
■ Experienced technical team provide customized design and quickly respond support

Quick Selection
Load capacity for each station, Station quantity, Distance between two stations;
■ Transmission speed, takt time;
■ Diameter of ring rail;
■ Positioning accuracy;
■ Noise requirement;
■ Surface protection;
■ Another requirement.

Main Applications
3C Industry, Lithium battery, Medical and Pharmacy Industry, Photovoltaic Industry, Automotive and Electronics etc.;
■ Particularly suitable for multi-station, multi-process high-efficiency operation such as assembly, testing, welding.
